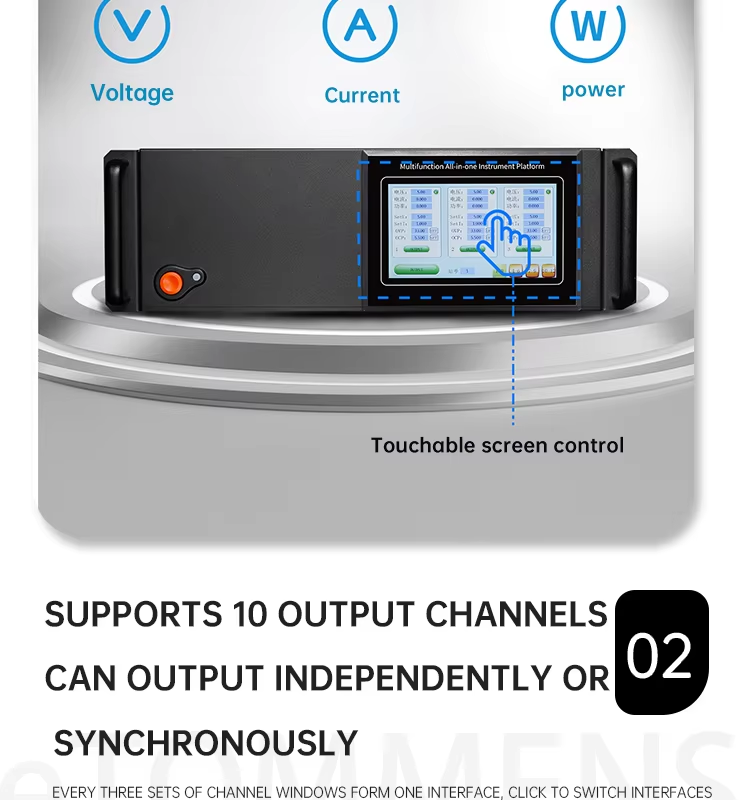

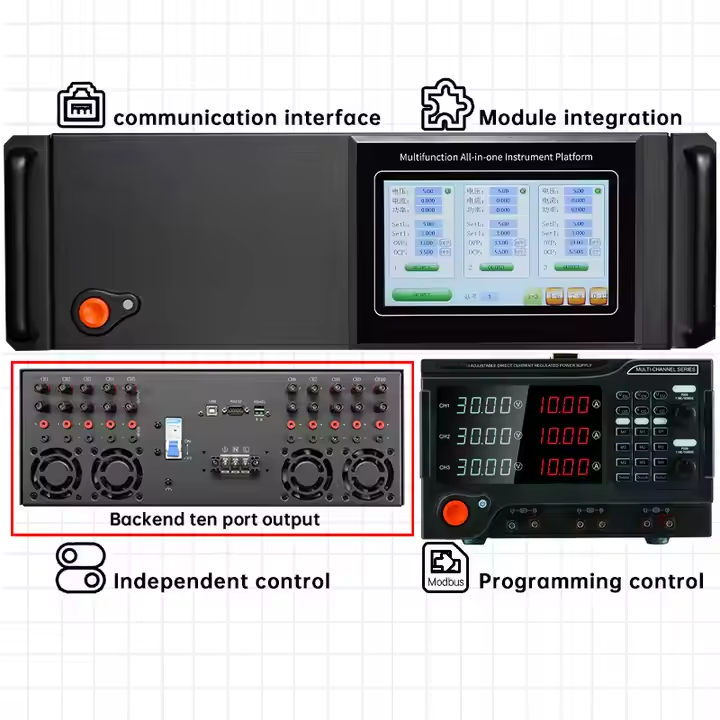

TTLTES UMM-Series Multi-channel Power Supply
| Product Parameters | |
| Display resolution | |
| Voltage | ＜100V：10mV；=100V：100mV |
| Current | 10mA |
| Preset accuracy | |
| Voltage | 0.1V |
| Current | 0.1A |
| Stability | |
| Voltage stability | ≤±(0.2%+0.05V) |
| Current stability | ≤±(0.5%+0.05A) |
| Load stability | ≤0.5% |
| Ripple and noise | ≤1% |
| Operating Environment | |
| Altitude | ≤2000m |
| Relative humidity | ＜80% |
| Ambient temperature | 5℃~ 40℃ |
| Storage environment | |
| Ambient temperature | -20~ 80℃ |
| Relative humidity | ≤80% |
| Power Input | |
| Input | AC 220V±10%，50Hz (or AC 110V ±10%，60Hz) |
| Size and weight | |
| Size | 500(D)×430(W)×155(H)mm |
| Weight | about 19kg |
